Single Zone - Overlay XPS Cement Coated Board Underfloor Heating Kit (Pipes @ 150cc)

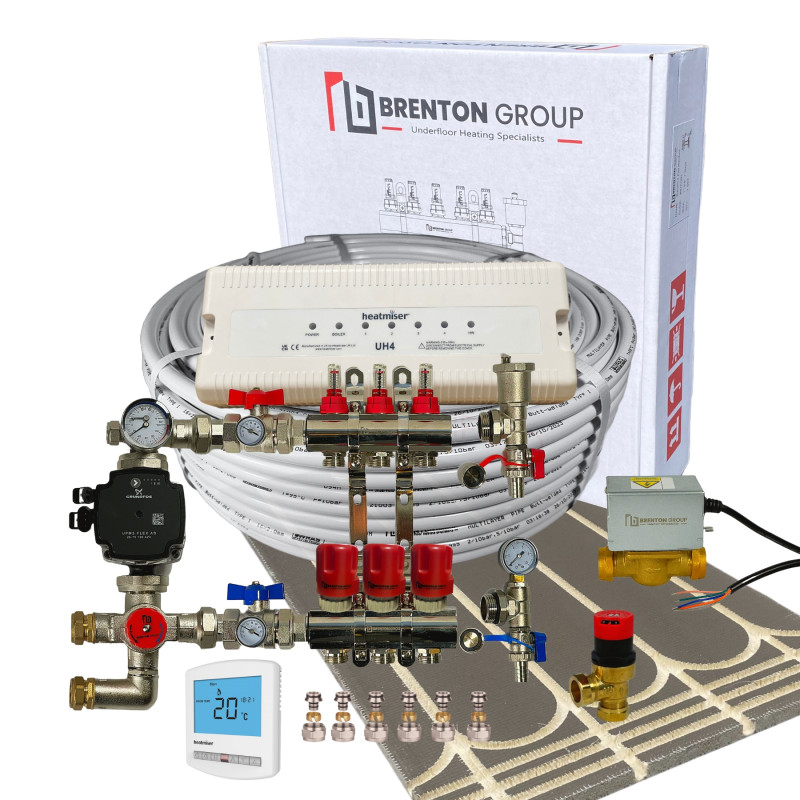

Items Included:

• Brenton Pex-Al-Pex Pipes (Aluminium core pipe – WRAS Approved)
• Complete Brenton Manifold with Fittings
• Grundfos A-Rates Water Temp Control Pack with Brenton Blending Valve
• Brenton 22mm 2-Port Zone Valve
• Brenton 20mm XPS Cement Coated Boards – Pipes @150cc for 16mm Pipes
• Heatmiser Slimline Programmable Room Thermostat

Manifold (Complete):

Brenton® Underfloor Heating Manifold is made of high-quality brass nickel plated and comes complete with isolation valves, brackets and screw connectors for the correct pipe size.

The flow beam has flow meters for balancing and viewing individual circuit flow rates and an automatic air vent. The return beam has individual isolation valves to shut off loops and a pressure gauge.

Our manifolds come with:

• 1x flow manifold & 1x return manifold
• A Flow meter per port
• An Isolation valve per port
• Isolation ball valves with temperature gauge
• Drain & fill points
• Automatic air vents
• Pre-fitted mounting bracket
• Eurocone pipe connectors

Pipe Specification – Pex-Al-Pex – 16x2mm:

The Brenton® Pex-Al-Pex pipe is a high-performance, WRAS-approved solution for underfloor heating systems. Made from high-temperature resistant polyethylene (PE-RT), it features a welded aluminium core with inner and outer PE-RT layers, all permanently bonded with advanced adhesive technology. The specialised welding ensures exceptional durability and long-term reliability.

Water Temperature Control pack:

The Brenton® Water Temperature Control Pack is designed to regulate the flow temperature of underfloor heating systems up to 200m², with a maximum heating load of 14kW. The pack includes a thermostatic mixing valve, A-rated Grundfos pump, return elbow, temperature gauge, manifold adaptors, and all required seals.

Brenton 20mm XPS Cement Coated Overlay Boards:

The Brenton® XPS Overlay Panel System is a low-profile underfloor heating solution, designed for quick and easy pipe placement in both domestic and commercial settings. Manufactured from high-density XPS (300kPa), these panels are thermally insulating, lightweight, waterproof, and faced with a reinforced cement coating for added strength.

Offering minimal impact on floor height, the panels efficiently distribute heat while optimising the performance of wet underfloor heating systems. The durable cement-faced surface is ideal for direct tile bonding, while other floor finishes such as engineered wood, carpet, and vinyl can also be installed with suitable preparation.

Perfect for solid floors (concrete, screed, asphalt) and suspended timber floors with appropriate boarding, the Brenton® XPS Overlay Panels provide a versatile, robust, and thermally efficient solution.

Controls:

The Heatmiser Slimline Programmable Room Thermostat is a hard-wired controller designed for precise underfloor heating management. With a 7-day programming schedule, it allows you to set up to four different temperatures at different times of the day, ensuring comfort and energy efficiency throughout the week.

Its sleek, slimline design blends seamlessly into any room, offering easy control and reliable performance for modern heating systems.
