Press-fittings have been designed to be used in conjunction with the Multilayer pipe as a press fit system with no requirement for hot works. This type of joint has become increasingly more popular due to its simple and quick installation, along with high working temperature and pressure capability.
The Press Jaw, specific for every diameter of fittings, compresses a stainless steel sleeve, which secures the pipe onto the core of the fitting. The hydraulic and mechanical sealing is guaranteed by the special profile of the fitting and the double O-ring.
After pressing, the fitting produces a joint with maximum strength and durability.

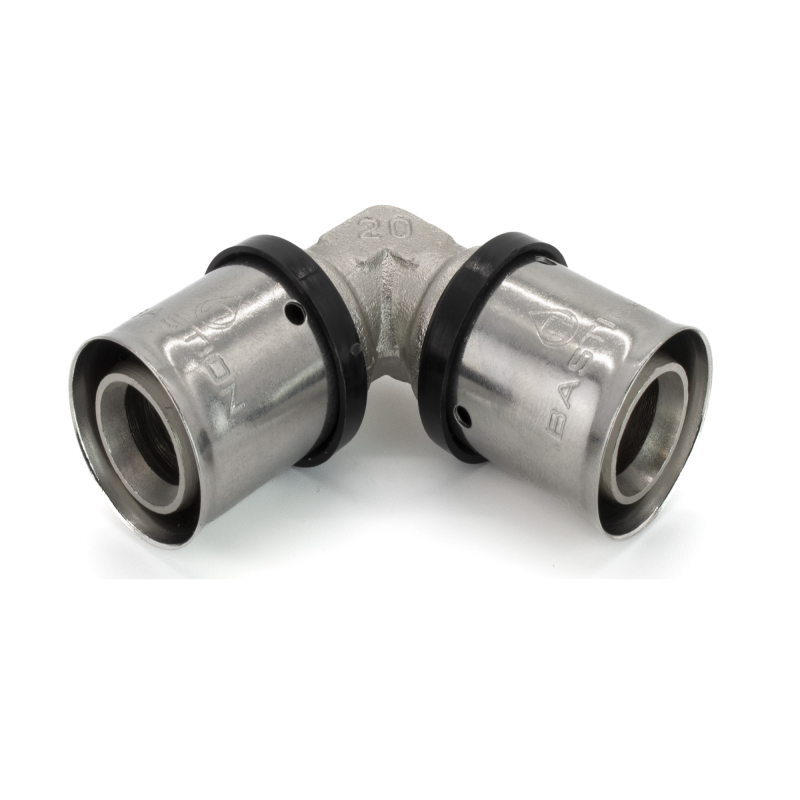

Construction Details:
The stainless steel sleeve is connected onto the fitting by white plastic ring.
Each sleeve has the indication of the diameter.
The plastic ring has four important functions:
it prevents di-electric contact between the layer of aluminum of the pipe and the brass body of the fitting, thus preventing the risk of possible corrosion
it provides sight holes to ensure that the pipe has been fully inserted into the fitting
it guides the correct positioning of the jaws around the fitting
